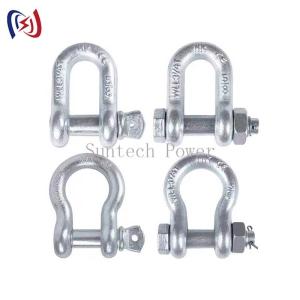

The forged High Strength Shackle is essential for safe and reliable lifting operations in power grid construction
| Item number | Model | Rated Load (KN) | Main Size (mm) | Weight (kg) |
| A | B | C | D |
| 17131 | GXK-1 | 10 | 55 | 42 | 12 | 20 | 0.15 |
| 17132 | GXK-2 | 20 | 67 | 58 | 16 | 22 | 0.29 |
| 17133 | GXK-3 | 30 | 97 | 82 | 20 | 34 | 0.80 |
| 17133A | GXK-3A | 30 | 97 | 112 | 20 | 34 | 0.80 |
| 17134 | GXK-5 | 50 | 107 | 89 | 22 | 39 | 1.12 |
| 17134A | GXK-5A | 50 | 107 | 131 | 22 | 39 | 1.29 |
| 17135 | GXK-8 | 80 | 125 | 96 | 30 | 42 | 2.40 |
| 17136 | GXK-10 | 100 | 141 | 114 | 34 | 48 | 3.56 |
| 17137 | GXK-16 | 160 | 152 | 139 | 37 | 54 | 4.80 |
| 17138 | GXK-20 | 200 | 164 | 140 | 39 | 60 | 5.17 |
| 17139 | GXK-30 | 300 | 186 | 146 | 50 | 68 | 7.5 |
Product Description:
Transmission Line Stringing Tools are essential equipment for effectively installing and maintaining transmission lines, ensuring the safe and efficient transfer of electricity. This product is designed to handle the demanding requirements of high-voltage transmission projects, offering a reliable solution for stringing conductors with precision and ease.
Key Product Attributes:
Maximum Pulling Force: 300KN - The Transmission Line Stringing Tools are capable of exerting a maximum pulling force of 300KN, providing the necessary strength to handle heavy-duty transmission line installation tasks with ease.
Rated Voltage: 10KV-500KV - With a rated voltage range of 10KV to 500KV, these tools are suitable for a wide variety of transmission line projects, ensuring compatibility with different voltage requirements.
Outer Diameter: 26 - 65 mm - The tools are designed to accommodate transmission lines with outer diameters ranging from 26mm to 65mm, offering versatility for various conductor sizes.
Max Conductor Diameter: 60mm - The maximum conductor diameter of 60mm ensures that the tools can handle a wide range of conductor sizes commonly used in transmission line installations.
In addition to the key product attributes mentioned above, the Transmission Line Stringing Tools are built to meet high-quality standards, ensuring durability, reliability, and safety during operation.
When selecting lifting shackles for use with the Transmission Line Stringing Tools, it is essential to consider factors such as load capacity, material construction, and safety features. Chain shackles are a popular choice for their versatility, strength, and ease of use. To choose the right lifting shackle, assess the maximum load requirements of the transmission line stringing task, ensuring that the shackle's working load limit exceeds the anticipated load. Additionally, opt for shackles made from high-quality materials such as alloy steel to ensure strength and durability. Check for safety features such as secure pin fastenings and load ratings to guarantee safe and efficient operation.
In summary, the Transmission Line Stringing Tools offer a comprehensive solution for the installation and maintenance of transmission lines, providing the necessary capabilities to handle a wide range of voltage requirements, conductor sizes, and pulling forces. With attention to detail and quality, these tools contribute to the successful completion of transmission line projects while ensuring safety and efficiency throughout the stringing process.
Applications:
1. Overhead Power Line Construction: The Suntech GXK tools are ideal for stringing transmission lines ranging from 10KV to 500KV, making them perfect for use in the construction and maintenance of overhead power lines.
2. Telecom Infrastructure Projects: These tools are well-suited for telecom infrastructure projects that require the installation of overhead cables and wiring. The high strength d shackle suppliers can rely on the Suntech GXK tools for efficient and safe stringing operations.
3. Utility Line Maintenance: Whether it's repairing existing utility lines or installing new ones, the Suntech GXK Transmission Line Stringing Tools offer the durability and precision needed for successful operations.
4. Industrial Applications: From setting up anchor shackles to lifting heavy loads, these tools are essential for a wide range of industrial applications that require reliable stringing equipment.
5. Construction Projects: Contractors can benefit from the Suntech GXK tools during construction projects that involve the installation of overhead structures and cables, ensuring smooth operations and efficient stringing processes.
With a screw stroke of 220mm, conductor section area of 30-50mm, and an outer diameter range of 26-65mm, the Suntech GXK tools offer versatility and adaptability for various stringing tasks. The hooks slot length of 60-160 provides added flexibility for different applications.
For those in need of crosby shackles for sale, the Suntech GXK Transmission Line Stringing Tools are a reliable choice, offering ISO certification, a negotiable price, and a minimum order quantity of 1 PCS. The tools come packaged in sturdy plywood cases for safe transportation, with a delivery time of 3-7 days and payment terms of T/T and L/C. With a supply ability of 5000 PCS per month, customers can rely on the Suntech GXK tools for their stringing needs.
Customization:
Product Customization Services for the Transmission Line Stringing Tools:
Brand Name: Suntech
Model Number: GXK
Place Of Origin: Ningbo
Certification: ISO
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: T/T,L/C
Supply Ability: 5000 PCS/Month
Lifting Height: ≤18m
Rated Voltage: 10KV-500KV
Maximum Pulling Force: 300KN
Outter Diameter: 26 - 65 Mm
Conductor Section Area: 30-50mm
Packing and Shipping:
Product Packaging:
The Transmission Line Stringing Tools are carefully packaged in a sturdy box to ensure they are protected during transportation. Each tool is securely placed inside the box with adequate cushioning material to prevent any damage during shipping.
Shipping Information:
Once your order is processed, the Transmission Line Stringing Tools will be shipped within 1-2 business days. We partner with reliable shipping carriers to ensure timely delivery of your order. You will receive a tracking number to monitor the status of your shipment until it reaches your doorstep.
FAQ:
Q: What is the brand name of the Transmission Line Stringing Tools?
A: The brand name is Suntech.
Q: What is the model number of the Transmission Line Stringing Tools?
A: The model number is GXK.
Q: Where is the Transmission Line Stringing Tools manufactured?
A: The product is manufactured in Ningbo.
Q: What certification does the Transmission Line Stringing Tools have?
A: The product is certified with ISO.
Q: What are the packaging details for the Transmission Line Stringing Tools?
A: The packaging details include Plywood Case.
